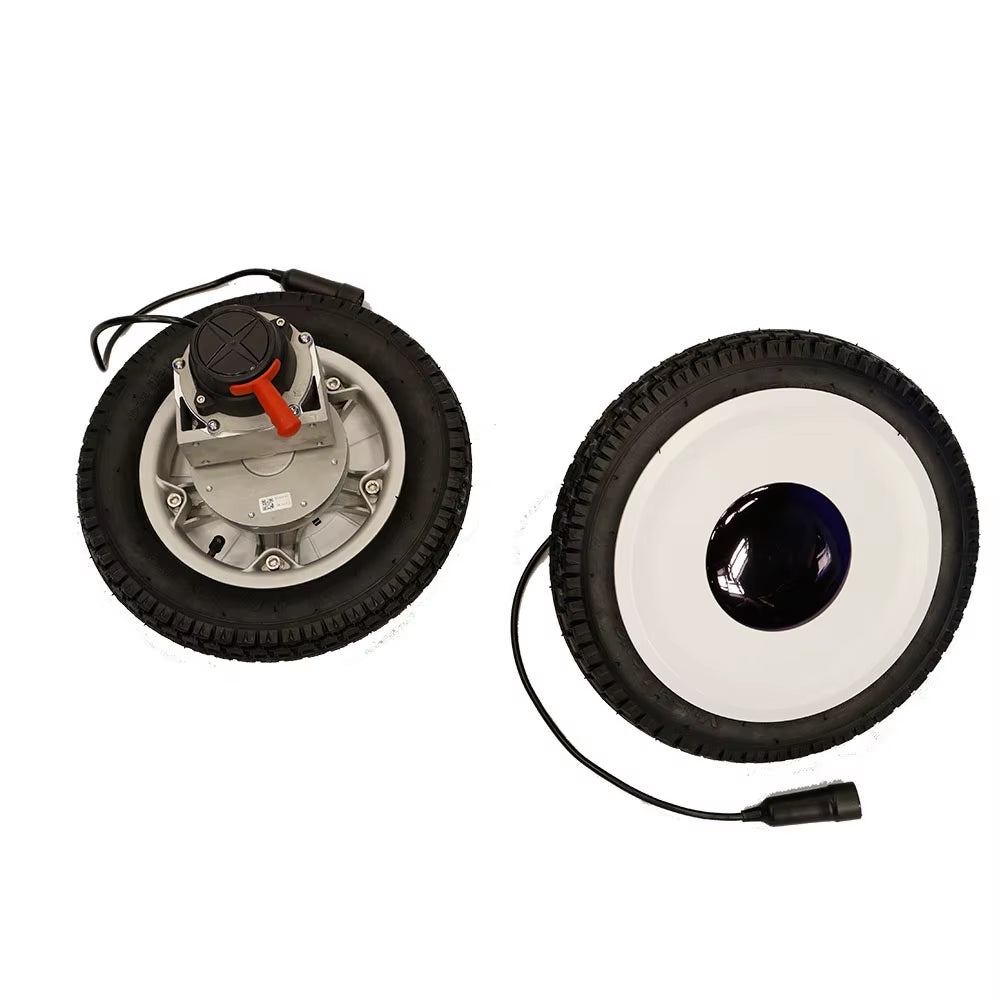

Yuanlang Wheelchair Hub Motor 24V 250W Brushless Wheelchair Motor Electric Wheelchair Motor
24V / 250W
$129.00
Sale price
$129.00
Regular price
$0.00
Skip to product information
Yuanlang Wheelchair Hub Motor 24V 250W Brushless Wheelchair Motor Electric Wheelchair Motor
$129.00
Sale price
$129.00
Regular price
$0.00
Video Description
Products Details
1. Characteristics
* Brushless motor, high efficiency, long working lifespan, free of maintenance;
* Single-stage gear power transmission, low loss and long driving range; * Small size, light-weight, suitable for various portable electric Wheelchairs; * Speed and power of the motor at users' option; * Rectangle plate installation, compatible with a variety of models; * Adaptive 12 inches inflate-free type; * With anti-tip wheels (user selectable).
2. Parameters
* Voltage supply：24V dc * Power supply: 250W * Structure: Gear drive * No-load speed: 2200RPM * Output speed：98RPM（hall sensor motor） * Start current：≤1.8A * No-load current：≤1.1A * Efficiency：≥85% * Work temperature：-30~+80℃ * Size：12-inch solid tire * Weight：4.88kg (including the wheels) Kindly remind: Please contact us for the complete user manual for the controller if you want to buy it. Thanks.
Electrical Diagram
For More Details please Consult Customer Service to obtain the Product Catalog.

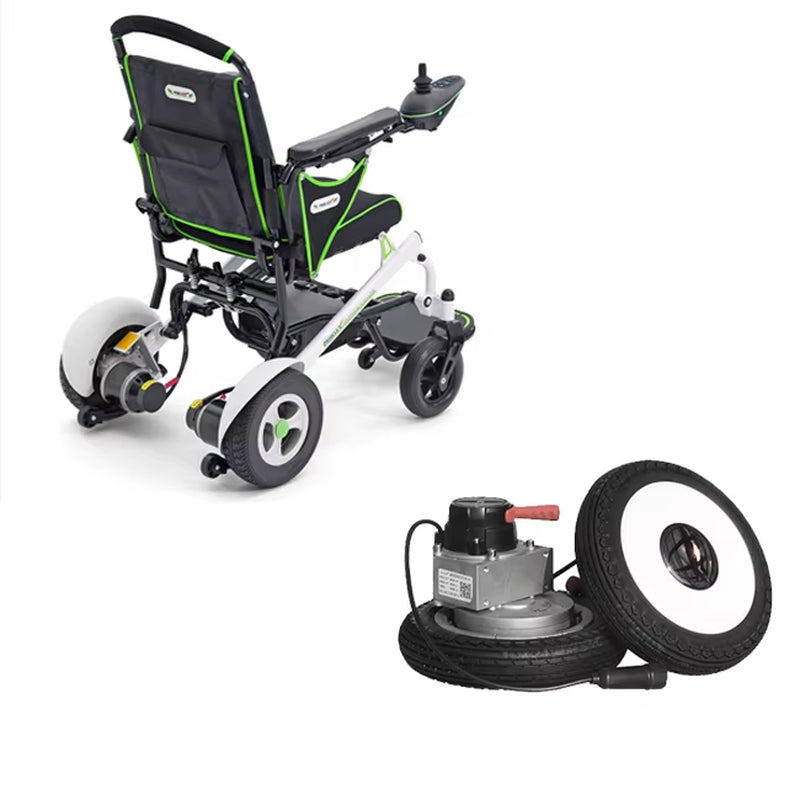

Product application
Product name |
bldc motor |
Application |
Electric wheelchair |
Brake type |
electromagnetic brake |
Torque |
0-30N.M |
Brake lever |
3N.m 24V dc |
Insulation class |
F |
Reduction Ratio |
23：1 |
Insulation voltage |
0~550Vac/1mA/1sec |
Noise Grade |
≤60 |
Work temperature |
-30~+80℃ |
Tyre type |
12-inch solid tire |
Weight |
4.88kg (including the wheels) |
Certifications
Exhibition
Company profile
One-stop professional motor controller manufacturer
Yuanlang controller was founded in China 2001, we specialize in development, production and sales of electric vehicle speed control systems and drive system of electric wheelchair. We produce brushless motors, brushless controllers for power wheelchair/rickshaw. With an area of 9000 square meters, we have built our own supply chain with high quality control standards and passed ISO9001 certificate of quality system. With more than 10 engineers for brushless dc motor and controllers’ research and development, we have strong independent design and development capability. Custom-made controllers are widely accepted by us. At the same time, we have engineers who can speak fluent English. That means we can supply after-sales support and guidance smoothly for our customers. Our motors are exported worldwide, and over 80% motors are exported to Europe, the United States, Australia, Korea etc. Looking forward to establishing a long-term business relationship together with you for mutual business success.
FAQ
Q1: What kind of motors can you provide? A1: For now, we mainly provide dc motor, brush dc motors for power wheelchair, with the tyre type from 8 to 10 inch. Q2: Is there a MOQ for your motors? A2: No. We can accept 1 pc for sample making for your testing, and the price for sample making will have difference than bulk price based on different style. Q3: Could you send me a price list? A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, and rated torqued. The price also varies according to different order qty. So it's difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide. Q4: How about your delivery time? A4: For brushless dc motor, the sample delivery time is about 10-15 days; bulk time is 15-20 days. Please take the sales confirmation for final reference. Q5: What's your warranty terms? A5: One year.
